In cab winch remote

A few years back I started work on an in cab remote for my Jeep. I wanted to be able to use the winch without breaking out the remote, and running it back into the cab. Knowing that the remote is just a on-off-on momentary switch, I got to work wiring a direct line into the cab. I used a safety switch to ensure that power to the in cab remote was never hot when I didn’t want it to be.
The setup runs from a 12v source off the fuse panel, through the switch and out to the winch. In the winch, it’s connected the same as the Warn remote, and activates the relays to control the winch. It’s pretty straight forward and makes using the winch so much nicer when you need to do it in cab

I used a trailer 4 pin harness to connect the in cab section to the winch. This allows for quickly disconnecting if I need to remove or service the winch.

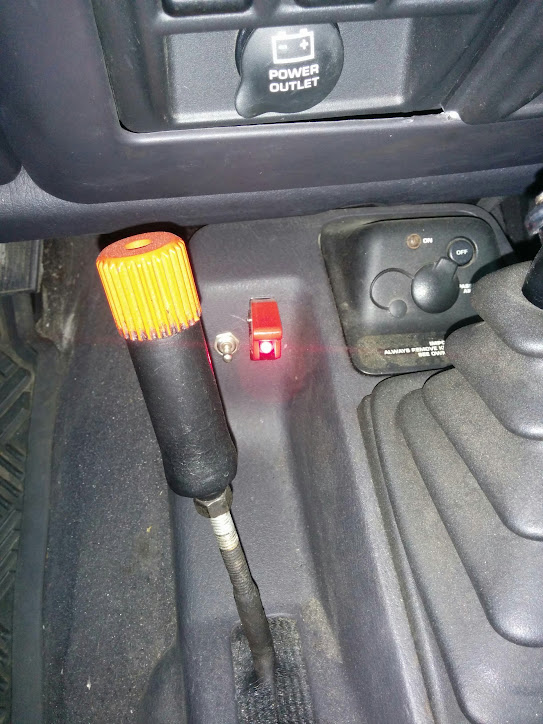

Here's the setup, conveniently located in front of my 4wd shifter. It's easy to reach from the drivers seat and simple to operate

It's hard to make out here, but that's the wire into the back of the winch. I drilled a hole and added a grommet for a clean looking install. At a quick glance, you'd think it was a factory option. In my opinion anyways.

Adding some extra light

There comes a time in every Jeepers life when extra light it required. I decided to try some RioRand 4" lights. The price what right, and well, they're pretty good. Nice and bright and for the price, I really can't complain.

To begin, I needed to wired in a new switch, fuse block and relay. The lights themselves at 18 watt each, a total of 36 watts, at 12 volts, that's only a 3 amp draw. Hardly needs a 30 amp relay, but I'd rather do it right.

To feed power, I decided to build some custom cables and tap into the size posts on my battery. When I upgrade to the military battery clamps, I may change this.

The switches come off the always on 12v feed from the fuse panel on the TJ. Located right in behind the glove box. I've already made a break out connector in the past, so it was easy to tie into

Wires run through a handy grommet in the firewall to the auxiliary fuse panel. I took the opportunity to run a switch and wires for an upcoming electric fan install.

New switches in and looking stock. The reverse light is a previous install.

Nice and bright, even in the sunshine. Still need to get out and aim them, but they really light up my life (HA!)
